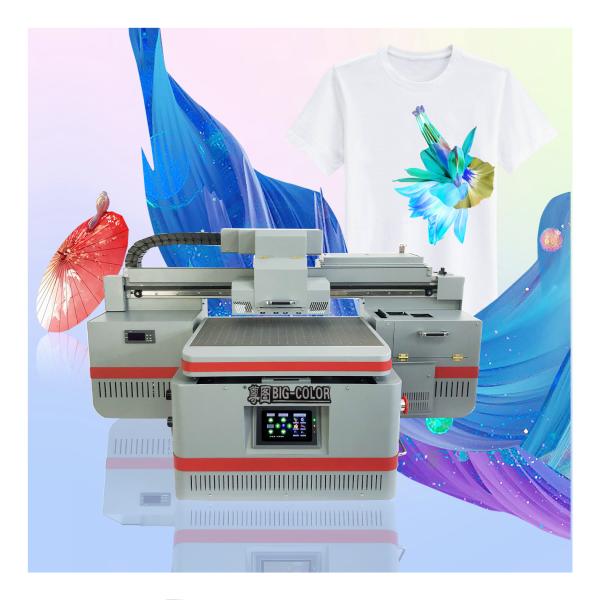

ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

Name: ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software
Brand: Big-Color
Price: 100.00 USD

Wholesale ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software from china suppliers

Type : Inkjet Printer

Print Dimension : A2

Applicable Industries : Printing Shops, Other, Advertising Company

Condition : New

Plate Type : Flatbed Printer

Place of Origin : Anhui, China

Brand Name : Big-Color

Use : Paper Printer, Label Printer, Card Printer, Tube Printer

Automatic Grade : Automatic

Color & Page : Multicolor

Voltage : 220V/110V

Dimensions(L*W*H) : 970*1010*560mm

Weight : 90 KG

Warranty : 13months

Ink Type : uv ink

Key Selling Points : bottle print function

Marketing Type : Hot Product 2022

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 13months

Core Components : Motor, Boards system

Product name : A2 UV printer machine

Print head : TX800 head*2pcs

Priting Color : 6color+w+v

Print speed : 140sec/A2 page

Printing Size : 40*60cm

Printing height : 120MM

Printing bottle size : Max 70mm diameter

Printer Platform type : Suction vacuum table

RIP software : Maintop(main) Photoprint(optional)

Print resolution : Max 720*4320dpi

Packaging Details : The normal package is stronger wooden box with metal structure inside(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special reque

Price : $100.00 - $4,800.00/sets

MOQ : 1 set

Contact Now

Product Description

Big Color small size uv printer can print on rotary and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

SPECIFICATIONS FOR ZT-4060
Product Name	a2 uv flatbed printer
Model	ZT4060
Printer head	2 pc tx800 head(dx8)/xp600 head(dx9)
Speed	A3: 80seconds. A2: 140 seconds
Maximum Resolution	720*4320 dpi
Ink	K C M Y W V 4 COLOR +WHITE+VARNISH
Printing Type	Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Max Printing heigh	15 cm for standared (20cm for special order) for glass plate tyep 12 cm for vacuum plate type 80mm diameter for bottle
Rip software	Maintop 6 uv version for standared & photoprint uv 12 for optional
Machine Dimension	1.141.090.76m
UV lamp	2 UV LED LAMP For water coolling

High level mode 4060 uv printer,vaccum flatbed(optional）

Click on the image and then you can watch the live video

ZT4060 A2 UV Printer with Bottle Print Function and Optional Photoprint RIP Software

Hard oxidation platform, high printing resolution and easy to clean to surface even by knife.

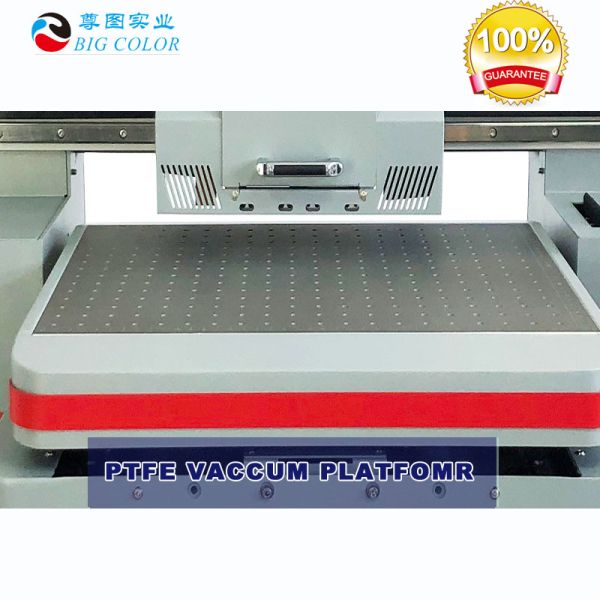

Vacuum platform can suction thick material.

LCD Touch panel onto machine.

Easy to control.

Famous Hiwin liner guide way. high precision and silence during moving.

Auto height sensor unit

CNC aluminum carriage.

Stable and high accuracy

Stainless steal capping system. auto up and down to clean and protect the printhead. extend the head working life

Separately UV lamp control snob. it could adjust the varnish lamp power only. making sure the varnish print light enough.

Printhead heater button. it is make sure the print head can work even in the lower temperature environment.

NEW UV DTF film printing instruction:

What is UV PET film

It is a new technology since 2021, it is including A and B two different film.

firstly, printed by UV white+color +varnish ink on A film

secondly, laminate the B film with onto A.

thirdly， you could cut it and pasted onto any surface.

The advantages:

it is fit for any shape of surface,

Metal, wood, glass, stone all kindly of material is ok.

Resistance of 80℃ temperature after pasted.

How to choose a good quality UV DTF film:

Easy to slip out the cover film

No glue left on to surface

Firm enough.

Model list of us

Model No	Print head	Printing area	Printing height	Speed	Color
A3-UV-single head	1 pcs Epson DX8	40*30cm	15cm	120sec/page (A3)	CMYK+W
A3-UV-double head	2 pcs Epson DX8	40*30cm	15cm	80sec/page (A3)	CMYK+W+V
A3-DTG-single head	1 pcs Epson DX7	40*30cm	15cm	120sec/page (A3)	CMYK+W
A2-UV-doube head	2 pcs Epson DX8	40*60cm	15cm	60sec/page (A3)	CMYK+W+V
9060-dx8	3 pcs Epson DX8	100*70cm	8cm	4.5m²/h	CMYK+W+V
9060-4720	3 pcs Epson 4720	100*70cm	8cm	10m²/h	CMYK+W+V
1610-dx8	3 x Epson DX8	160*100cm	25cm	6.5m²/h	CMYK+W+V
1610-4720	3 x Epson 4720	160*100cm	25cm	12m²/h	CMYK+W+V
2513-dx8	3 pcs Epson DX8	250*130cm	8cm	6.5m²/h	CMYK+W+V
2513-4720	3 pcs Epson 4720	250*130cm	8cm	12m²/h	CMYK+W+V

Certifications

Sample Display

Our Exhibition&Factory

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2. What’s your delivery time?
We will arrange the delivery within 7~12 working days after received the deposit or full amount .

3. What’s your payment method?
Payment method is T/T , Western Union, paypal.

4. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an
overseas engineer service to you.

5. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back
the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

7. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can
start to negotiate about distribution relationship. Thank you.

8. How about Warranty?
13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken
parts should be sent back.

9. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request

10. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
